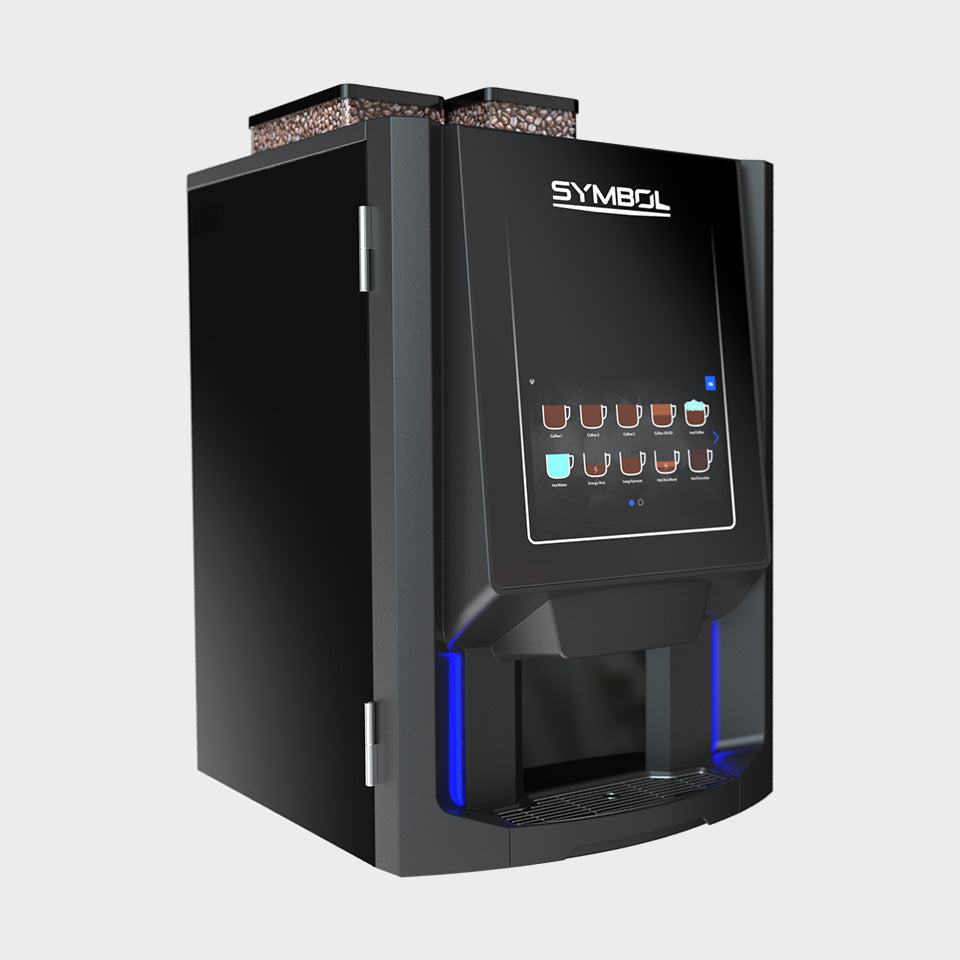

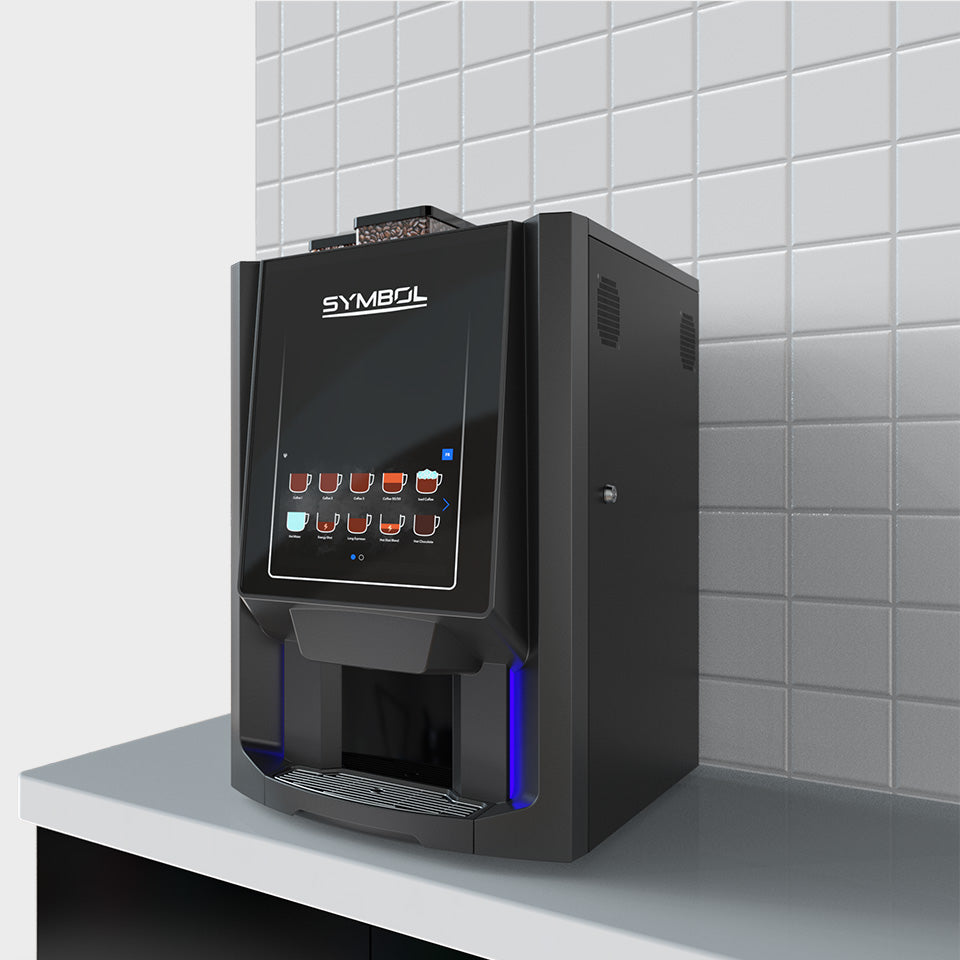

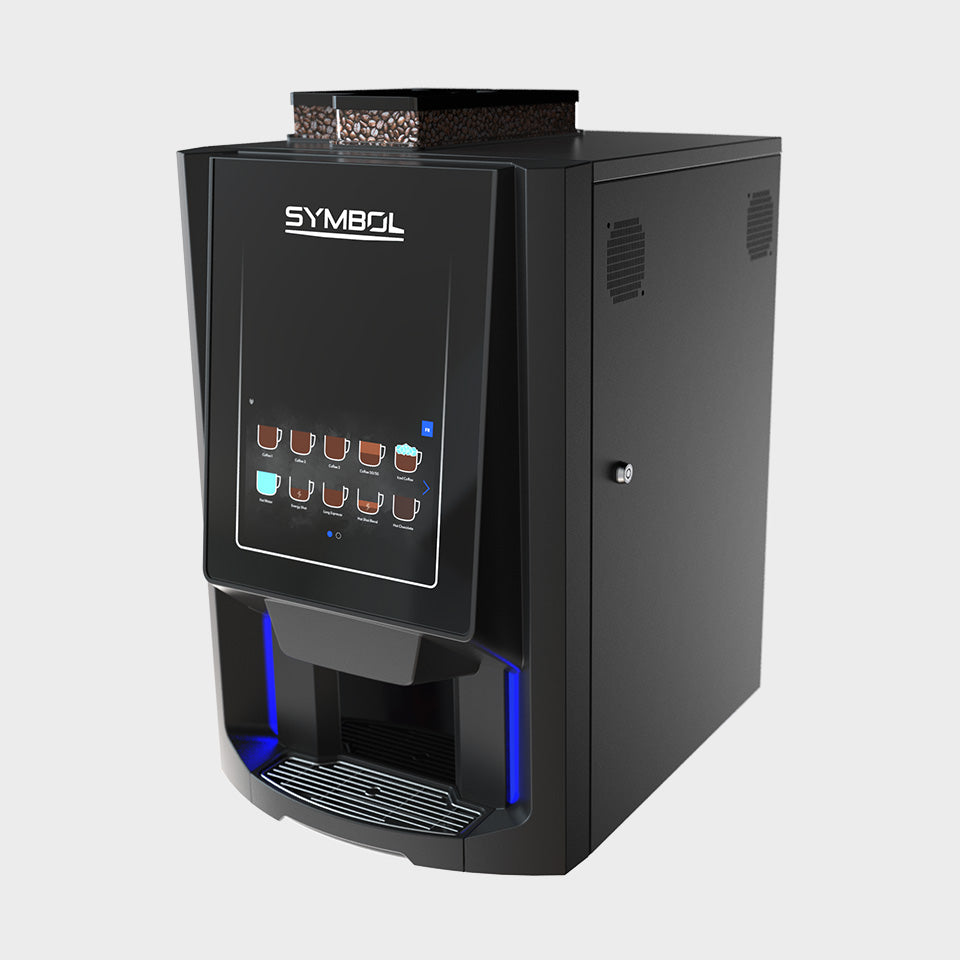

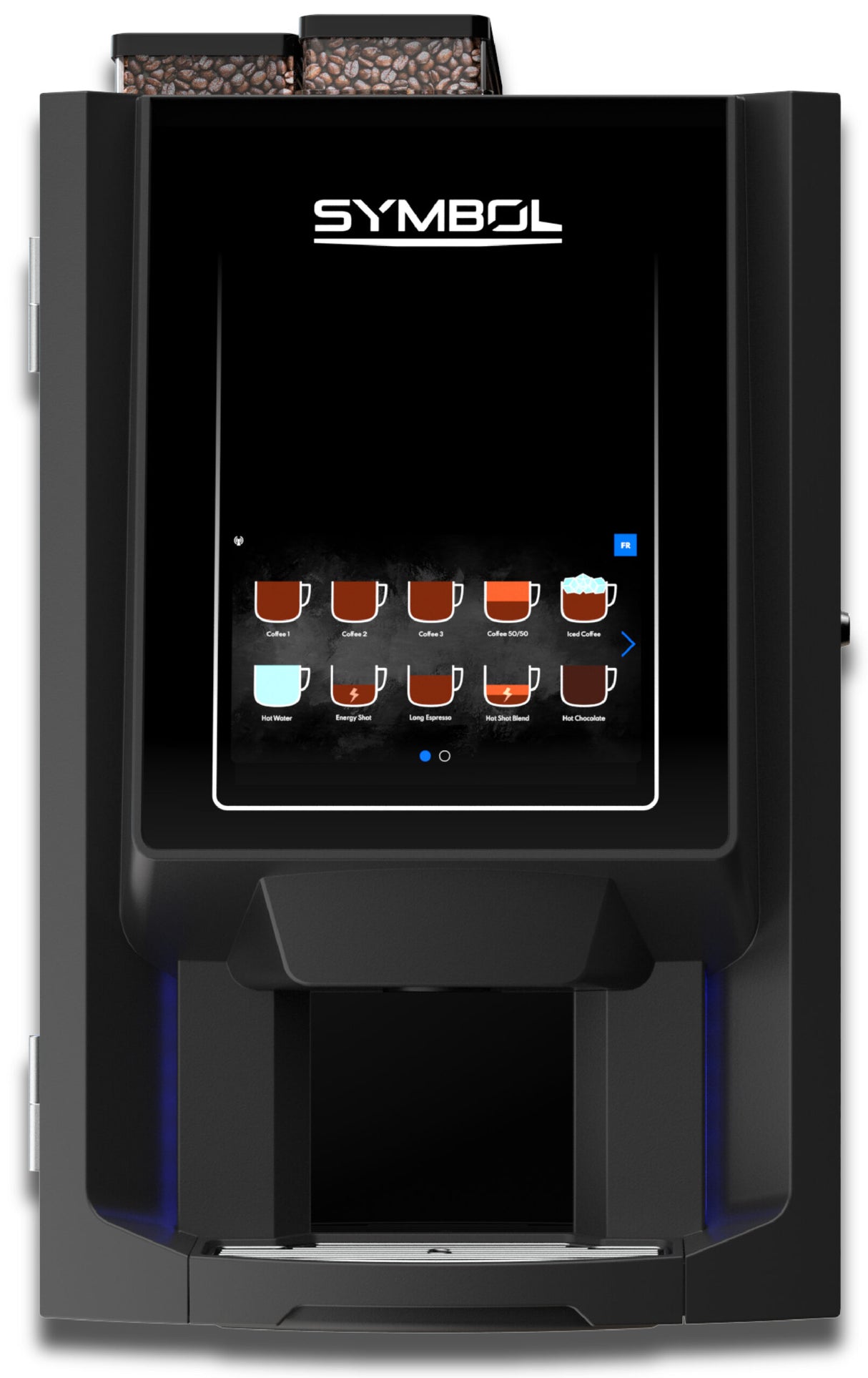

Cafection Symbol — Modular Automatic Coffee Machine for Offices

The self-serve coffee solution for your workplace

The Cafection Symbol is an automatic coffee machine from the Designer series, designed for offices and professional spaces that want to offer freshly ground coffee on demand — no barista, no compromise on quality.

What sets it apart

Its modular architecture is unique in its category: configure your Symbol with 1 or 2 bean hoppers, 1 or 2 soluble ingredient containers, and an optional ground coffee container. Each bean hopper has its own integrated grinder — a decisive advantage for preserving the distinct aromas of each variety served.

Its 10-inch HD touchscreen, designed to comply with ADA accessibility standards, makes service intuitive for all users. Sophia technology allows for remote management and monitoring of the machine from any device.

Key specifications

• Yield: up to 60 beverages per hour — suitable for coffee breaks in offices or coworking spaces
• Power supply: 120 V AC, 15 A, 60 Hz — connection to a standard North American circuit
• Water supply: integrated reservoir (2.8 liters) or direct plumbing connection
• Dimensions: 452 W × 607 D × 775 H mm — compact footprint for an office counter
• Weight: up to 42.6 kg depending on the chosen configuration
• Maximum cup height: 14 cm (5.5 inches) — compatible with most reusable glasses
• Bean hopper capacity: 2.3 kg (1-hopper model) or 1.1 kg + 1.4 kg (2-hopper model)
• Soluble container capacity: 1.4 kg each
• Available beverages: up to 13 options depending on the configuration
• Screen customization: videos, screensaver, recipes, grammage, cup size, brew strength — fully adjustable

Daily use

The Symbol connects to your WIFI network via a USB adapter (optional cellular modem for the basic model). The Sophia platform centralizes remote management: consumption tracking, recipe adjustments, refill alerts. The Sophia Solutions contactless application allows users to order their beverage from their phone — without touching the machine.

Maintenance is simplified thanks to a coffee grounds chute kit (optional accessory) and a guided cleaning cycle. ADA compliance ensures optimal accessibility in all types of work environments.

For whom / Not for whom

Ideal for:

• Corporate offices and coworking spaces wanting to offer self-serve freshly ground coffee
• Employee services managers who want to remotely control their equipment
• Inclusive environments: ADA compliance makes it an accessible solution for everyone
• Organizations that want to personalize the coffee experience to their image (brand video, screen themes)

Less suitable for:

• High-traffic cafes and restaurants exceeding 60 beverages per hour (consult the Cafection Emblem range for this type of volume)
• Residential use (consult our De'Longhi or Jura automatic machines for home)

Positioning

In the category of commercial automatic coffee machines for offices, the Cafection Symbol stands out for its evolving modular architecture and advanced connectivity via Sophia. It occupies an intermediate position between entry-level countertop machines and high-volume solutions intended for large cafeterias.

Included / Compatible with

• Cafection cabinet (floor stand) — optional
• Coffee grounds chute kit — optional
• MDB compatible payment systems
• Bean hopper extensions (2-hopper model)
• Cellular modem (optional for the basic model)
• WIFI connectivity via USB adapter
